Git integration with Jenkins the main objective here is how GitHub connects with Jenkins, once build tool maven works and then Java artifacts generated ready for deploy the application (.war file).
This post is 2 mins read.
 |
| Jenkins integration with GitHub Code repo build with maven |
Prerequisites:
You should have been Signup either on GitHub or Bitbucket
GitHub repo url: https://github.com/BhavaniShekhar/my-app
Global Tool configuration
To configure the following we have installed on the Jenkins Master here I've used CentOS box. And while configuring these we need to provide the installed location for each.
- Java - defined name as LocalJDK8 or JDK8 /JDK11/JDK18
- Maven - defined name can be as LocalMaven or maven3
- Git - name defined as LocalGit or default
How to configure JDK as Global tool in Jenkins?
You need to navigate in the Jenkins Dashboard select Manage Jenkins and from the options select Configure Global tools. In the Configure Global tool page goto the JDK section where we have two choices the one we can use existing JDK by providing the JAVA_HOME path. And the other option is we can install JDK automatically as per you project needs select the JDK version.
update-alternatives --display java
 |
| LocalJDK8 configuration |
You can also either use OpenJDK or Oracle JDK with desired version.
How to Install and Configure Maven as tool in Jenkins?
We can install on the target build server that could be Jenkins controller machine or a dedicated machine for build process, where Maven must be installed.
Install Maven on CentOS
This is simple process using yum we can install for latest we can use dnf before that, switch to root user and run the following commands:
java -version # to confirm Java installed yum install -y maven mvn --version # To confirm that Maven installed successfully
Note that Maven installation prerequisite is JDK. that is you must have JAVA_HOME defined.
 |
| Configuring LocalMaven |
The latest version maven can be used here.
How to configure Git as global tool on Jenkins?
Git is by default installed on most of the Linux VMs. But on the cloud free instances we don't see so we need to install it with the package manager command utilities w.r.t operating system.
 |

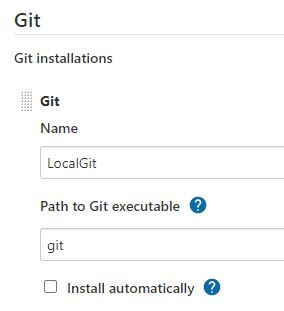

| LocalGit configuration on Jenkins Global Tool Configuration |
Once all prerequisites are installed and configured we are good to go for the Jenkins integration with GitHub project and use the Maven to build and deliver the artifacts.
How to Setup a Jenkins Maven Project?
Step 1: Configure new item with Freestyle project
Let's create Freestyle project with the following
Name: github-integration
In the General section enter
- Description: This is first java project will be build with maven.
- Discard old builds checked
- Max # of builds to keep: 1
Step 2: Source Code Management section select Git
- a. Repository URL value entry that uses Git clone https protocol.
- b. GitHub project will be mostly free and public repos, there is no need to create credentials. Go with 'none' option. If it's organization project it will be private repo you need to create credentials.
- Branch: You need to specify the branch name as master or main branch will be used as default. For testing purposes we have to change to feature or relative to the environment (dev,QA, prod etc).
 |
| Jenkins integration with GitHub - Source Control Management tab setup |
When you work on the real time project you may need to work on test/feature branch instead of master branch.
Step 3: Delete workspace before build
In the 'Build Environment' section, select the check box the 'Delete workspace before build starts'. There are more advanced options available but for now we can go with default.
 |
| Jenkins Build Environment - delete workspace before build starts |
Step 4: Build using Invoke top-level Maven targets
In the 'Build' section, add build step -> invoke top-level Maven targets.
- a. Maven version : LocalMaven
- b. Goals : test install or clean package
- c. POM : If it is available in the root directory nothing to mention if some other location then you need to specify the location example: maven-samples/single-module/pom.xml
- d. Now Save the project and all set to run it,
 |
| Jenkins Build - invoke top-level Maven targets |
All configurations are completed, Go to the top of the Jenkins menu, Trigger the "Build now" observe the console output.
* If the build executed on the Jenkins controller then, You can see the package created in the workspace directory
/var/lib/jenkins/workspace/github-integration/target/myweb-0.0.1.war
* If the build executed remotely then, You can see the workspace location then followed by the target SNAPSHOT file location
