Ansible 2: Ad-hoc commands and Getting start Writing a Playbook

Overview of Ansible PLAYBOOK

An Ansible playbook is a single YAML file that contains multiple plays.
Each Play will be defined with a set of activities that are treated as tasks, and these tasks can be executed at the remote host that is the Ansible client.

The task can be a single action that can be one of:
  •   Execute a command
  •   Run a script
  •   install patch or package
  •   Reboot VM/box
  •   Restart services

Simple ansible play can be
  • check the timestamp
  • reboot server
  • wait for connect back
  • check the uptime
  • check timestamp

Complex ansible play
  • Take a backup of files on 20 DB VMs
  • Deploy application on 100 App boxes
  • 100 servers patch apply
  • 100 VM reboot after patch
  • Mail and slack notifications on patch process

Ansible ad-hoc command

When you plan to write a playbook first you need to test the ad-hoc commands as trial and error will gives more confidence to run in a play

  # Ansible ad-hoc command syntax
ansible [-i inventry_file] server[group1:group2] -m module [-a argument]

Here is some, "Hello World" program from Ansible ad-hoc command and playbook

cd qa; ls
# Using qa servers as targets
ansible qa -m debug -a "Welcome To VybhavaTechnologies from remote"
ansible -i localhost -m debug -a "Welcome To VybhavaTechnologies from localhost"
We can also the ping to the specific host alias that is defined in the "/etc/ansible/hosts" file as shown below
[servers]
host1 ansible_ssh_host=192.168.33.200
host2 ansible_ssh_host=192.168.33.210
host3 ansible_ssh_host=192.168.33.220

Why do we run ad-hoc commands in Ansible Controller?

  • To use setup tasks to quickly bring a managed node to a desired state
  • To perform a quick test to verify that  a playbook has executed successfuly
  • To run a discovery task to verify that a node meets certain criteria

Sample ad-hoc commands with Ansible Shell Module

Let's experiment with 'shell' module send a terminal command to the remote host and retrieve the results. For instance, to find out the disk-space and uptime usage on our host2 machine, we could use:

 ansible -m shell -a 'df -h .;uptime' server

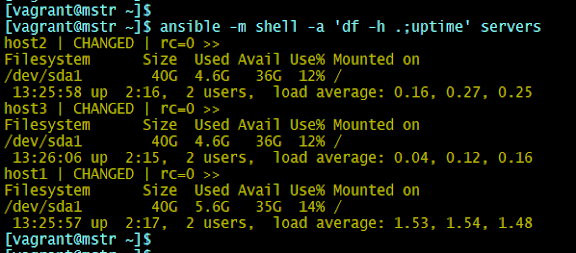

Ansible shell module execution example.

You can run the ansible commands on the selective hosts here host2 and host3.

ansible -m shell -a 'uptime' host2:host3

Converting the above ad-hoc command execution into a playbook as hello.yml file. You can use your favourite editor, vi hello.yml # File name: hello.yml

---
 - name: Hello from ansible playbook
   hosts: localhost

   tasks:
   - name: Prints message
     debug:
       msg: "Welcome To VybhavaTechnologies from remote"
Execute the playbook using ansible-playbook command with playbook yaml file as :

ansible-playbook hello.yml
More Examples to practice different automation needs:

     ansible -i prod_inv prod -m shell -a "uptime"
     ansible -i prod_inv prod:web:db -m shell -a "uptime" # multiple group
     ansible web -m shell -a "free -m" # get the RAM size of web group

Execution of the above commands are
Ansible shell module ad-hoc command execution


How to converting the ad-hoc commands to playbook?

Here I've tried to get converted simple uptime, free commands to run in playbook

# File: fun-play.yaml

---
 - name: Monitor CPU and Mem
   hosts: all
   tasks:
   - name: Find CPU load
     shell: uptime
     register: up_time
   - debug:
       var: up_time.stdout_lines

   - name: Find RAM Size
     shell: free -m
     register: free_ram
   - debug:
       var: free_ram.stdout_lines
Execution of the above play book as follows:
ansible-playbook fun-play.yaml

You can add df command to this one more play into the playbook and give try.

How a PLAYBOOK structure can be?

A playbook can have multiple play sections.

Multiple play sections in a Ansible Playbook


Creating your first Playbook

Here is a simple play book with very simple tasks
---
 -  name: First playbook
    hosts: db
    tasks:
      - name: test command
        command: hostname
        register: output

      - debug: var=output

      - name: test a script
        script: remoterun.sh
        register: scriptout

      - debug:
          msg: "{{ scriptout.stdout }}"

 - name: another play
   hosts: db
   tasks:
     - name: Install webserver
       become: yes
       become_user: root
       yum:
         name: httpd
         state: present

     - name: Start webserver
       become: yes
       become_user: root
       service:
          name: httpd
          state: started

Create a script File remoterun.sh

  echo "Welcome from shell script"

It's execution output is as shown below:

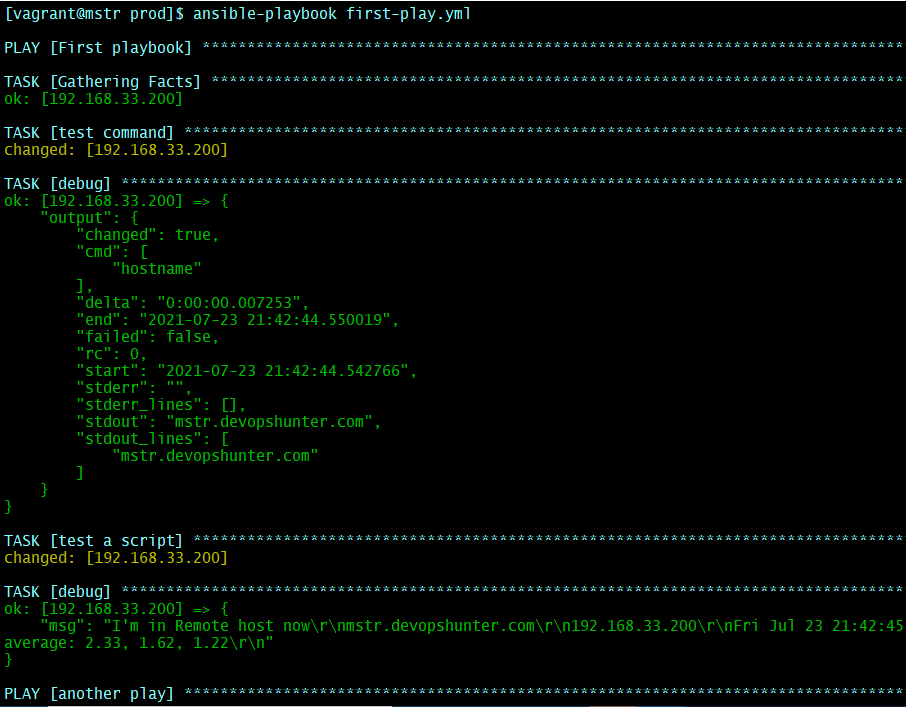

First playbook execution
continue...

Apache web server started


How does Ansible built-in Debug works?


A debug module block can be added to any of the tasks, which will help us to understand the Ansible execution flow.

Sample example where debug uses ansible facts to retrieve the remote host IP addresses.
---
- name: Testing
  hosts: all
  gather_facts: yes

  tasks:
    - debug: var=hostvars[inventory_hostname]['ansible_env'].SSH_CONNECTION.split(' ')[2]

The execution output is image



_/\_
    Hope you enjoyed this post, Keep learning, Keep smiling Keep sharing ...  :)
