Ansible 6 Understanding host_vars and group_vars

In this post, we will discuss the possible options for ansible variables precedence, Experiment with few host_vars, group_vars, and their variable precedence. You can specify the variables along with the host inside your inventory itself.

Ansible host_vars and group_vars and usage options

The command-line variable will be the highest priority.

To test the variable precedence, top priority extra vars

ansible -i "node1," all \
  -e "var1=VybhavaTechnologies" \
  -m debug -a 'msg={{ var1 }}'

Here -i use the target host and the group name to define an extra variable that will have the highest priority. Using debug module we can get the var1 value using jinja format to print.

ansible extra variables highest precedence

Let's see the following example:

  Create the inventory.yml file in "dev" directory. inventory.yml

all:
  children:
    common:
      children:
        webserver:
          hosts:
            node[1:2]:
          vars:
            var1: "webserver"
        dbserver:
          hosts:
            localhost:
              var1: "node3"
          vars:
            var1: "VybhavaTechnologies"

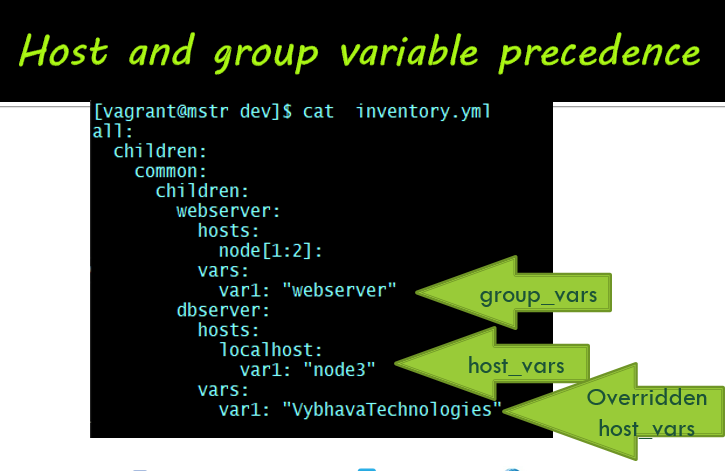

Ansible host_vars and group_vars

Now run the following command to know how the var1 will work at each group level and host level from the inventory variables.


ansible -i inventory.yml all -m debug -a 'msg={{ var1 }}'
#Try 2
ansible -i inventory.yml webserver -m debug -a 'msg={{ var1 }}'
ansible -i inventory.yml dbserver -m debug -a 'msg={{ var1 }}'

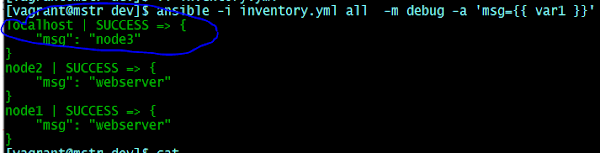

The output of the above execution is :

Ansible variable precedence test using inventory variables

Let's use clean inventory file now, that is remove all the variables values

inventory.yml

all:
  children:
    common:
      children:
        webserver:
          hosts:
            node[1:2]:
        dbserver:
          hosts:
            localhost:

Now let us use the group_vars and host_vars for the same purpose testing var1 value!

     mkdir group_vars hosts_vars
     mkdir group_vars/all
     vim group_vars/all/variables.yml
     var1: "I'm in group_vars all"

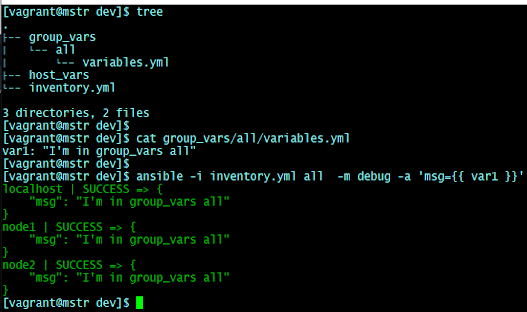

     tree
     ansible -i inventory.yml all  -m debug -a 'msg={{ var1 }}'
     #try dbserver target
     ansible -i inventory.yml dbserver -m debug -a 'msg={{ var1 }}'


The variable defined under the group_vars directory where you can use 'all' folder to use the variable in all playbooks and roles. if you want to use a specific variables for a specific group you need to define them separately, for db, web groups you may need some variable value will be executed from the dedicated folder

group_varrs example in ansible

That concludes the group_vars will be defined for all as shown above. but we can override them with host_vars, let's see how it is possible now.

specific group variable overrides all group

Let's quickly check how the host_vars are defined and have their precedence with the following experiment

Here we have tested with 'var1', but in real-time project different variables are required. There could be multiple variables need to be defined at each level which will play importance as per the project requirements. For example developers want notifications for webserver group, you can define 'email_to' variable with developers direct group. similar DBA team want to see mails notification when something happen on dbservers.

all:
  children:
    common:
      children:
        webserver:
          hosts:
            node[1:2]:
          vars:
            email_to: "webdeveloper@vybhavatechnologies.com"
        dbserver:
          hosts:
            localhost:
              email_to: "dba@vybhavatechnologies.com"
    vars:
      email_to: "allteams@VybhavaTechnologies"


Execution will be as follows:


    #try with all:
    ansible -i inventory.yml all -m debug -a 'msg={{ email_to }}'
    #try with dbserver:
    ansible -i inventory.yml dbserver -m debug -a 'msg={{ email_to }}'


Rule 1: When you create a sub-directory inside group_vars must be name of the group name, inside that you can define variables.yml file.
Rule 2: Defining the host_vars should contain sub-directories only with hostname(node1) where you can have variables.yml file.

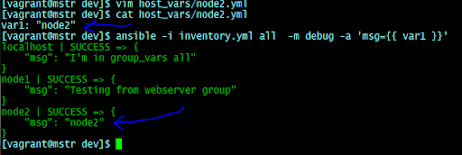

Let's examine the host_vars/node1/variables.yml file content with variable 'var1' is defined then it will be overrides the group_vars-> var1 value.

1. Jinja2 template variables
2. Ansible custom roles and variables

2022

Here is my new learning about host_vars and group_vars experiment hope you enjoyed

---
# Filename: varexample.yaml
# Extra Varialble targets [optional]: the hosts that will be tested; if nothing specific boxes are set, then localhost will be targeted

 - name: varibles in group_vars and host_vars
   hosts: "{{ targets | default('localhost') }}"
   gather_facts: false
   tasks:
     - debug:
         msg:
           - "var1= {{ var1 }} var1 type: {{ var1 |type_debug }}"
           - "email_to= {{ email_to }} email_to type: {{ email_to |type_debug }}"

Here are multiple usecases for the same playbook executions outputs

# default all groups
ansible-playbook varexample.yaml
# specific target as node1
ansible-playbook varexample.yaml -e targets=node1
# Specific target as webserver group
ansible-playbook varexample.yaml -e targets=webserver

group_vars and host_var examples in a Ansible Playbook

Courtesy by: Maheshwari

Every experiment is useful, every moment you spend for learning new things is valuable, Keep LEARNING

Keep Sharing!

H A P P Y   A U TO M A T I ON !! Enjoy with Ansible!!
