Docker Expose Port Understanding Port Mapping and Port Forwarding

 In this, we will discuss an experiment on Docker Container Network port exposed or published. A Netcat command utility will be used to make an echo server. which will be read the message on one socket and the other end sends the message to the terminal.

Understanding Port forwarding in Docker Containers

Background on Docker Port

Docker container ports by default mapping to host ports.

The -P option will bind the container exposed ports (EXPOSE command in Dockerfile) to random available ports of the host.

We can bind any port of the container even though it is not pre-defined with EXPOSE ones. For this, you can use -p (lower case) with host port followed by a colon (:) container port

Note: This experiment can be successful on ubuntu:14.04 image only. Because other than that ubuntu images don't support nc and host.docker.internal to look into the docker network.

Here we have four use cases:

1. Two ports open to run the echo server
2. Container access host network
3. Dynamically port mapping
4. Expose Port using TCP/UDP protocol

To understand more on docker network isolation with namespaces, Open 3 terminal set to view all 3 on a single screen.

Examples of Docker container port

USE CASE 1: TWO PORTS EXPOSED - USED AS ECHO-SERVER

In this case, let's use three terminals  on the same screen

Terminal 1:

# Create a container as echo-server with expose of 2 different ports
docker run --rm -ti --name echoserver \
 -p 5000:5000 -p 5001:5001  \
 ubuntu:14.04 /bin/bash
# Inside the container pipe between two ports
nc -lp 5000 | nc -lp 5001

To validate this experiment, how this netcat command will be used to communicate betwen two ports inside the container they work as echoserver.

Now open the Terminal 2 window and send the text message to localhost with 5000 will be forward to localhost with 5001

Terminal 2: Run the nc command as shown

nc localhost 5000
Vybhava Technologies gives knowledge on Docker

Terminal 3: Now open the third terminal and run the nc command with 5001 port this will be in waiting state

nc localhost 5001

Here you can observe that Terminal 3 having output automatically displaying the same message that you entered and send in Terminal 2 where the docker container acted as echo server

Docker Port Fortwarding withing container

USE CASE 2: Containers using host network - host.docker.internal/host IP

Terminal 1 remain the same as we have done it earlier in this Blog post

Terminal 2:

Note: Docker version 20.x supports following --add-host option way to communicate with host network from container.

docker run -it --name echoclient1 \
--add-host=host.docker.internal:host-gateway \
ubuntu:14.04 bash

#inside contianer

nc host.docker.internal 5000
echo message here

Terminal 3: Now run the ubuntu container

docker run -it --name echoclient2 \
--add-host=host.docker.internal:host-gateway \
ubuntu:14.04 bash

#inside contianer

nc host.docker.internal 5001

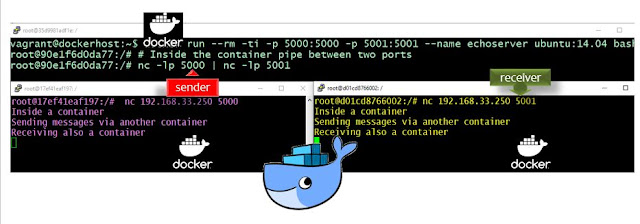

Expose port used by Sender and Receiver container

Observe that in terminal 2 write message same will displayed into the terminal 3

USE CASE 3: Dynamically port mapping to exposed container ports

The port inside the container is fixed port

The port on the host machine or VM is chosen from the available unused ports

This allows many containers to run programs with fixed ports

this often is used with service discovery programs

Terminal 1:

docker run --rm -ti \
-p 5000 -p 5001 --name echoserver \
ubuntu:14.04 bash

#inside container

nc -lp 5000|nc -lp 5001

Terminal 2:

docker port echoserver

#shows port mappings

nc localhost hostport1

#change hostport1

Enter a message to echo

Terminal 3:

nc localhost hostport2

#change hostport2

Now in this case you can observe that text automatically sends the message to Terminal 3 where netcat ready to display on to your terimal with the open port

USE CASE 4: USING Export Port with a Protocol TCP or UDP

docker run -p host-port:container-port/protocol

# protocal can be tcp or udp

Terminal

docker run --rm -ti -p 8888/udp \
--name echoserver ubuntu:14.04 bash

Here we have not used any host-port to forward it so Docker engine will help us to select the random port from host machine available ports.

Terminal 2:

First check the port to which it is bind from the container

docker port echoserver

Use the random port to send the message from localhost.

nc -u localhost mapport1-from-above
hello from udp

Now here observe that message send back to the terminal running container.

Expose UDP Port for docker container

Reference:

1. Docker official document port link
2. Discuss on host docker internal
3. Play with NetCat on ubuntu

.
